DESCRIPTION
The machine has the advantages of advanced design technology, stable performance, simple structure, convenient maintenance, small occupation area, automatic continuous work, large processing capacity and high utilization rate of raw materials. It is suitable for chemical, medical, food, starch and other industries.

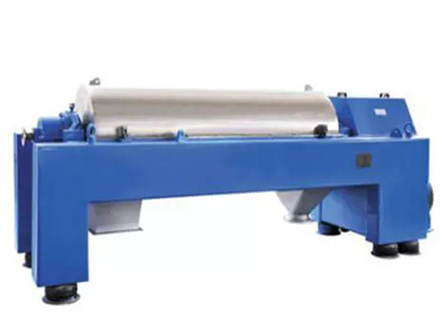

a. Horizontal centrifuge
Horizontal centrifuge uses centrifugal force generated by high-speed rotating drum to intercept solid particles in suspension and automatically discharge them out of the drum under the action of force. At the same time, under the action of centrifugal force, liquid in suspension is thrown out through filtering medium and small holes in the drum, so as to achieve the purpose of liquid-solid separation and filtration.
Horizontal centrifuge has incomparable price advantages of similar products, and it has the advantages of advanced design technology, stable performance, simple structure, convenient maintenance, small occupation area, automatic continuous work, large processing capacity and high utilization rate of raw materials. It is suitable for chemical, medical, food, starch and other industries.

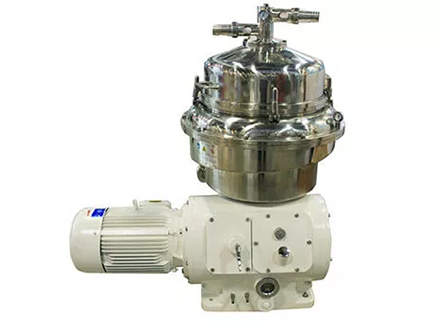

b. disk centrifuge
It is a kind of vertical centrifuge that can separate liquid and solid rapidly and continuously. The drum is mounted at the end of the vertical shaft. The drum is driven by a motor through a transmission device. The drum has a set of dish shaped parts stacked together -- discs. There is a small gap between the disc and the disc. The suspension (or emulsion) is added to the drum by the feeding tube located in the center of the drum. When suspension (or emulsion) flows through the gap between discs, solid particles (or droplets) settle on the disc under the action of centrifuge to form sediment (or liquid layer). The sediment slides along the disc surface and separates from the disc and accumulates in the largest diameter part of the drum. The separated liquid discharges from the outlet of the drum. The function of the disc is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The production capacity of the separator is greatly improved by installing the disc in the drum. Solids accumulated in the drum are removed manually after the separator shuts down, or discharged from the drum through the slag discharge mechanism without shutdown.

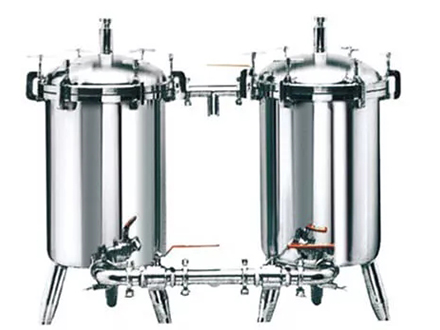

c. Duplex filter
The equipment is made of stainless steel and consists of two cylinders. It is a single-layer stainless steel welded structure. The inner and outer surfaces are polished. The top of the equipment is equipped with a bleeding valve for bleeding when working. Pipeline joints are connected by expansion. Through 0.3Mpa hydraulic test, the opening and closing of external thread
