DESCRIPTION

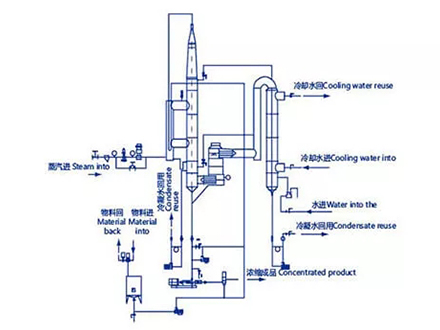

The falling film evaporator is made of stainless steel and consists of preheater, heating chamber, evaporation chamber, condenser, cooler, vacuum system, hot-press pump, circulating pump and electrical control system. It can be designed into single-effect, double-effect or multi-effect forms. It is widely used in concentration of food additives and other materials in biochemistry, pharmaceuticals, milk, fruits and vegetables, medicine and condiments industry and suitable for evaporating of heat sensitive, sticky, foaming materials.
Parameter
A. This series of equipment need to adjust the parameters according to the requirements before it works while ensuring the continuous and stable supply of materials.It is easy to be adjusted stably and efficiently and meet the requirements of qualified proportion to recover the solvent at the same time.
B. The concentration ratio is significant (up to 1.2-1.3), the thermal efficiency is high, and the energy saving effect is remarkable. We adopt the optimized design scheme to make the evaporation heat transfer coefficient reach 2400-3200w (㎡.K), which is very suitable and beneficial for the concentration of Chinese medicine.
C. Easy to use advanced control methods.It mainly takes the effective temperature as the control parameters in the process of LJN series concentration .The parameters are stable when the system is running, and it is easy to adopt advanced automatic control (PLC and human-machine interface control).The cost of control equipment is relatively low.These all make more convenient to realize automatic control for the production of traditional Chinese medicine.
D. The structural design is advanced and reasonable. In terms of structure, we adopt the optimized design scheme that advanced liquid distribution device to distribute the material and the pipe when feeding, so that the material can enter the heating pipes evenly. At the same time, we choose high-quality inner and outer mirror pipes as heating pipes to make the flow resistance of the material in the pipe small, fast and difficult to analyze. In order to improve the concentration efficiency, the system is equipped with advanced fog trap, which has strong ability to eliminate entrainment of fog. The separation efficiency can reach 96-99%, and the resistance drop is small.
E.Jet heat pump are used to save energy.
F.Designed based on customer requirements with manual operation and automatic.
G. Compared with the conventional falling film concentrator, it is unique in form and structure with high concentration proportion, high in heat transfer efficiency, energy saving and emission reduction.It is easy to clean and occupy a small area.
