Overview:

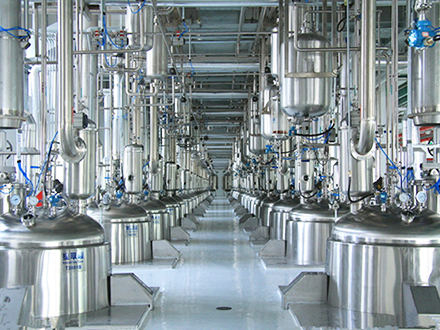

Extraction equipment simply using the extraction device to extract ingredients in traditional Chinese medicine extracted. The components of the traditional Chinese medicine extraction equipment can be divided into an extraction tank, a demister, a condenser, a cooler, a water separator, a filter, a pump, a slag door pneumatic control system, and a stirring control system. It can be designed and manufactured according to different process requirements or control requirements of users. This equipment is widely used in the traditional Chinese medicine, plant, food, biological, light industry, atmospheric pressure, pressurization, decompression, extraction, warm immersion, heat reflux, forced circulation, seepage, separation of aromatic oil and recovery of organic solvents. The shape mainly has straight cylinder type, positive cone type, inverted cone type, the appearance is detailed in the picture.
Performance parameters:
Configuration: CIP universal cleaning ball, thermometer, pressure gauge, safety valve, explosion-proof audition spotlight, quick-open feeding port, pneumatic slag door, stirring device, etc.
stirring device, etc.
Positive cone type extraction tank performance parameter table
Process flow:
