DESCRIBE

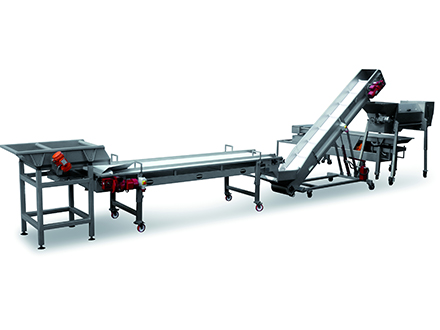

1. STAINLESS STEEL VIBRATING GRAPE RECEIVING HOPPER MOD. “TV130”,
having capacity for boxes unloading
Trough’s capacity 130 kgs of whole grapes
2.3500 X 800GRAPE SELECTION BELT TABLE, 3500 X 800
with AISI 304 stainless steel structure, mounted on four wheels, two fixed and two swivel with brake.
Flow surface of the conveyor belt with slightly inclined side walls to allow the operators to remove unwanted bunches of grapes to the outside, without lifting them but simply dragging them.
Drip-resistant lower cradle with liquid suction fitting.
Smooth PVC non-toxic, food-grade conveyor belt closed with a stainless steel junction.
Rubber drive roller driven by geared motor regulator, with handwheel for easy speed adjustment.
Driven roller with quick release system, to simplify washing of the moving surface.
Double adjustable scraper to clean the belt internally and externally.
Mechanical speed regulator for capacity adjustment.
Start/stop pushbutton control board in PVC on the machine with built-in socket and emergency stop mushroom. EC Declaration of conformity included
Brake kit on adjustable feet, in addition to braked wheels consisting of 4 plates bolted to the frame with adjustable brake/levelling feet; particularly useful if the table is used on irregular surfaces
Side channel for the transport and disposal of selected grape waste obtained through stainless steel profiles appropriately fixed to the table structure with central chute for the expulsion of selected grapes.
3.BELT ELEVATOR FOR GRAPES, 3750 x 400
We can supply you the right solution for the transport and the elevation of grapes
with AISI 304 stainless steel structure, mounted on four wheels, two fixed and two swivel with brake.
Height adjustment system with manually operated hydraulic jack.
The box hopper is fixed to the bucket elevator with bolts so that it can be replaced with one having a different shape and/or size, when required, as for the bin unload, for example.
Scraper for cleaning the inner side of the belt with easily removable and washable waste collection drawer
Start/stop pushbutton control board in PVC on the machine with built-in socket and emergency stop mushroom. EC Declaration of conformity included
4.GRAPE SELECTION VIBRATION TABLE, 3500 X 800
with AISI 304 stainless steel structure, mounted on four wheels, two fixed and two swivel with brake. The vibration allows the grapes, in bunches or otherwise, to spread out over the entire width of the channel, thus improving the visual check.
Smooth vibrating channel mounted on four rubber supports
Start/stop pushbutton control board in PVC on the machine with built-in socket and emergency stop mushroom. EC Declaration of conformity included
consisting of 4 plates bolted to the frame with adjustable brake/levelling feet; particularly convenient if the table is used on irregular surfaces.
Side channels for the transport and disposal of selected grape waste
5.HORIZONTAL DESTEMMER MOD. Alfa7
Production: 4 – 6 tons/h
All made of stainless steel Aisi 304
With receiving hopper having destemmer feeding screw
With destemming part composed by rotating perforated drum and rotating destemming shaft, having rubber paddles.
The machine is on wheels.
STAINLESS STEEL TELESCOPIC EXTENSION LEGS
6.CRUSHER MOD. Pg7
Production:7 – 9 tons/h
Crusher composed of no. 2 rubber rolls that can be adjusted by external handles and hopper.
